Junior Parts Guide and Mounting Instruction
Printable Mounting Instructions

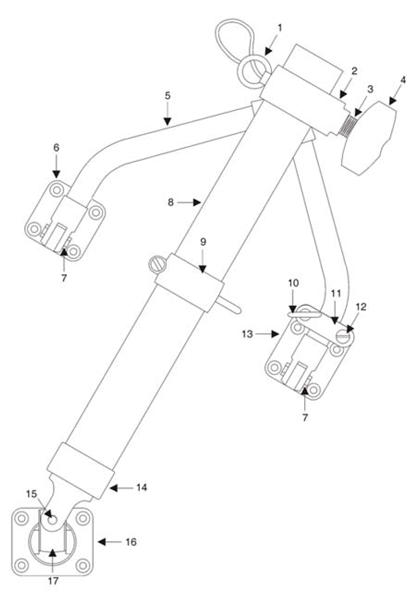

OH226S and OH234S PARTS LIST
| WISHBONE | ||
| 5 | OH2026-0100 | SMALL WISHBONE - COMPLETE with BASES |
| OH2026-0101 | SMALL WISHBONE with BOLT & LOCK NUT | |
| 7 | OH2026-0102 | CLEVIS BOLT & LOCK NUT |
| OH2034-0100 | LARGE WISHBONE - COMPLETE with BASES | |
| OH2034-0101 | LARGE WISHBONE with BOLT & LOCK NUT | |
| CLAMP HOUSING | ||

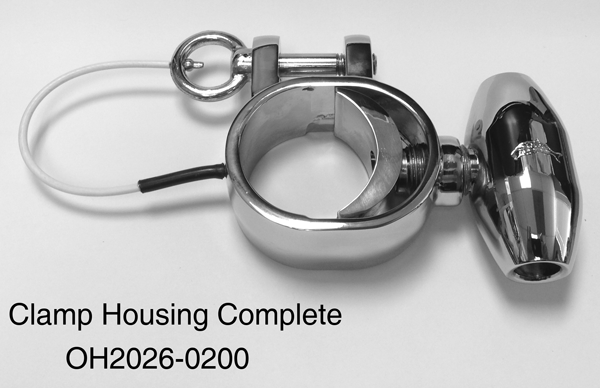

| 2 | OH2026-0200 | CLAMP HOUSING - COMPLETE |

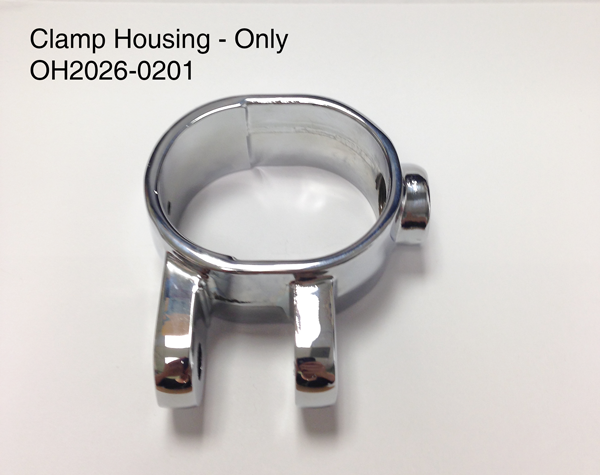

| OH2026-0201 | CLAMP HOUSING - ONLY | |

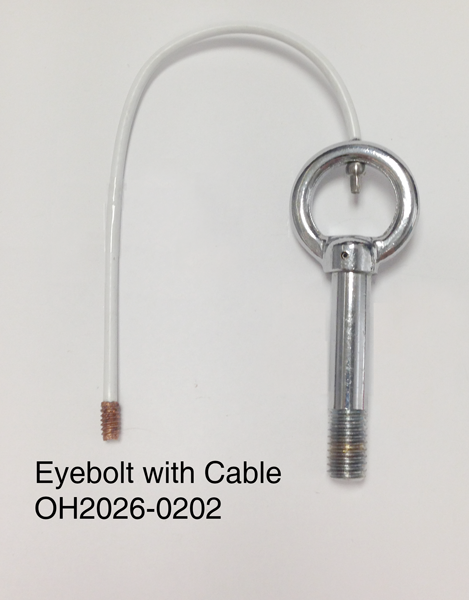

| 1 | OH2026-0202 | EYEBOLT with CABLE |

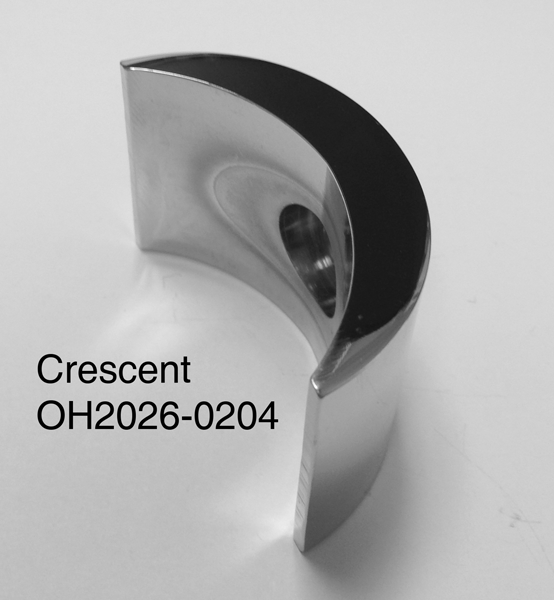

| OH2026-0204 | CRESCENT | |
| KNOB | ||

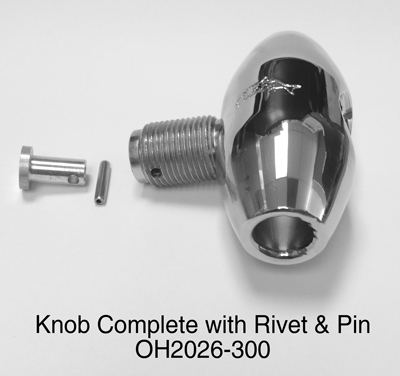

| 4 | OH2026-0300 | KNOB COMPLETE with RIVET & PIN |

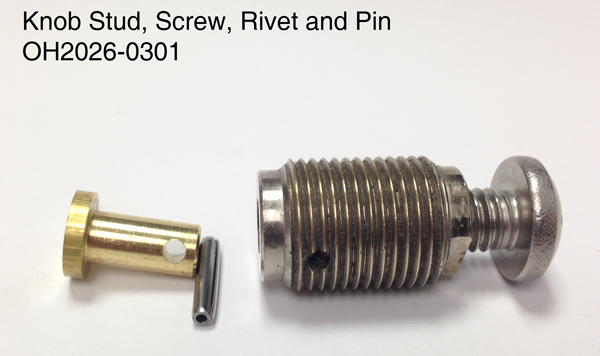

| 3 | OH2026-0301 | KNOB STUD, SCREW, RIVET & PIN |

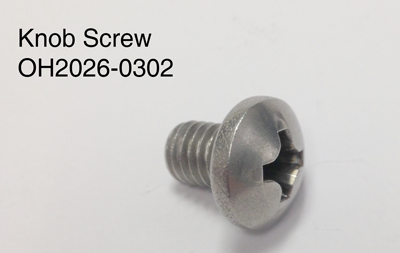

| OH2026-0302 | KNOB SCREW | |

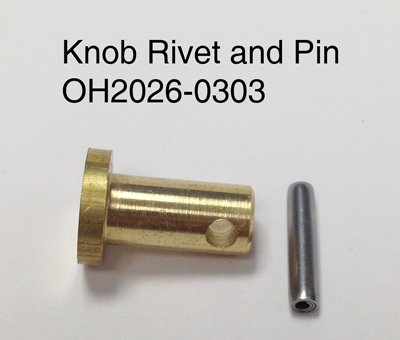

| OH2026-0303 | KNOB RIVET & PIN | |
| FOUR HOLE BASE | ||

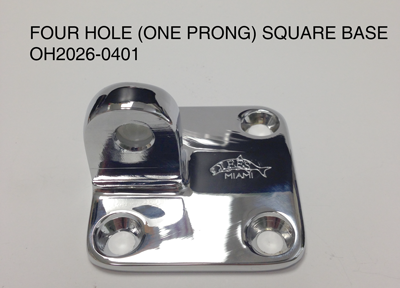

| 6 | OH2026-0401 | FOUR HOLE (ONE PRONG) SQUARE BASE |
| SIX HOLE BASE | ||

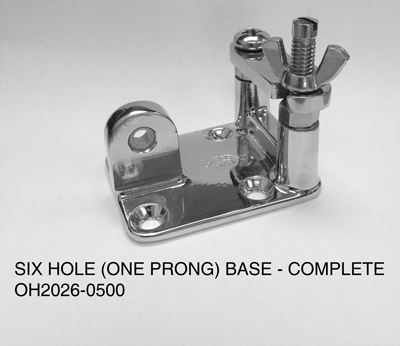

| 13 | OH2026-0500 | SIX HOLE (ONE PRONG) BASE - COMPLETE |
| OH2026-0501 | SIX HOLE (ONE PRONG) BASE - ONLY | |

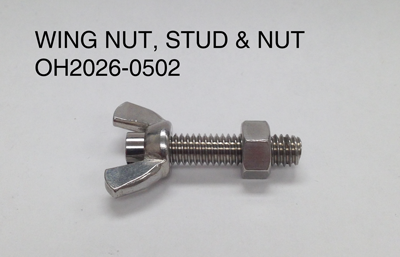

| 10 | OH2026-0502 | WING NUT, STUD & NUT |

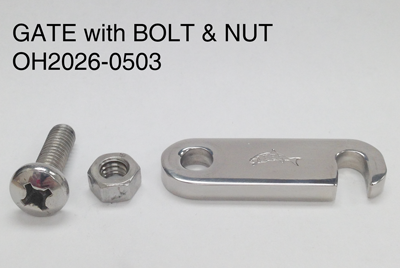

| 11 | OH2026-0503 | GATE with BOLT & NUT |

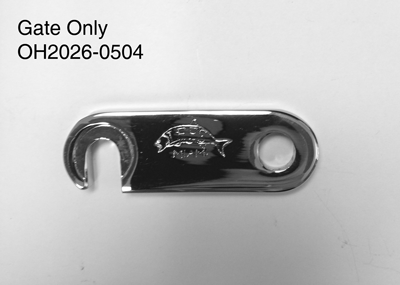

| OH2026-0504 | GATE ONLY | |

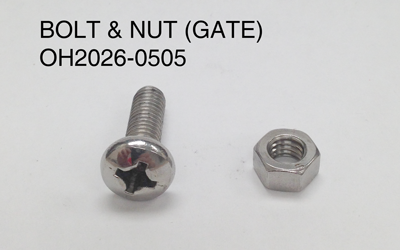

| 12 | OH2026-0505 | BOLT & NUT (GATE) |
| MAIN TUBE | ||
| 8 | OH2026-0600 | 2 in. X 18 in. SS TUBE with CUP |
| OH2034-0600 | 2 in. X 36 in. SS TUBE with CUP | |
| CUP | ||
| 14 | OH2026-0701 | CUP (TWO PRONG) WITH PINS |
| OH2026-0702 | CUP PINS | |
| LONG BLOCK | ||

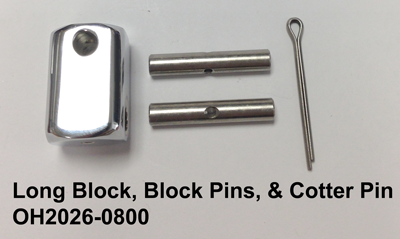

| OH2026-0800 | LONG BLOCK, BLOCK PINS & COTTER PIN | |

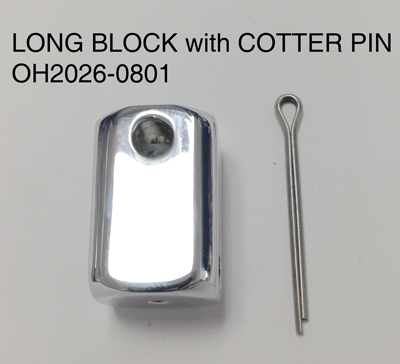

| 17 | OH2026-0801 | LONG BLOCK with COTTER PIN |
| 15 | OH2026-0802 | BLOCK PIN |
| OH2026-0803 | COTTER PIN (LONG BLOCK) | |
| RECTANGULAR BASE | ||

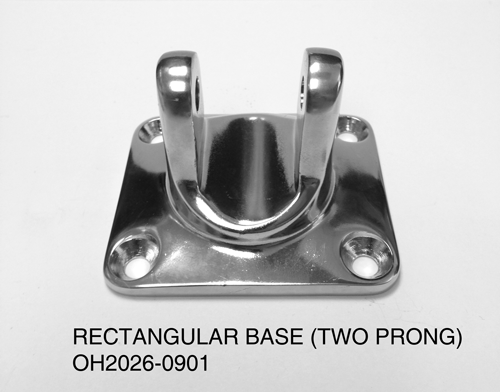

| 16 | OH2026-0901 | RECTANGULAR BASE (TWO PRONG) |
| ACCESSORIES | ||
| 9 | MC20 | 2 in. STOP COLLAR |
| MC0014 | 2 in. LAY-DOWN HOOK SS | |
| MC10 | 2 in. HOLDING BRACKET | |
