Swivel Base Rod Holders

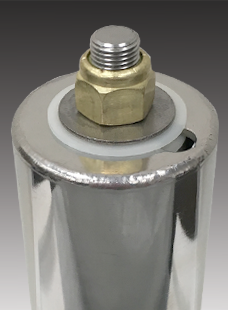

Without a doubt, our swivel base rod holder is the “Ultimate Rod Holder” for the serious sportsman. Primarily designed to be used with bent butt tackle, the rod holders unique swivel base allows the rod butt to rotate in the rod holder when side pressure is applied to the tip of the rod. This is an indispensable tool, especially important in Giant Blue Fin Tuna fishing, where reel drags in the neighborhood of 60 pounds are frequently used and can result in tremendous forces being applied to the rod holder pin. Not only does this make sheared rod holder pins a thing of the past but, more importantly, it allows the tip of the rod to follow the fish. This reduces the possibility of line fraying and enhanced drag as the line streams sideways out of the roller tip instead of over the roller. The rod is also more easily removed from the holder since it is not locked on a rigid pin. The swivel base holder functions as a standard rod holder when used with straight butt rods. Straight butt rods can be manually rotated so that the line remains on the tip’s roller. The amount of torque required to rotate the swivel is set by adjusting the pressure on two nylon drag washers with a ½ inch stainless steel lock nut at the bottom of the rod holder.

For measurements and dimensions see Rod Holder Specs.

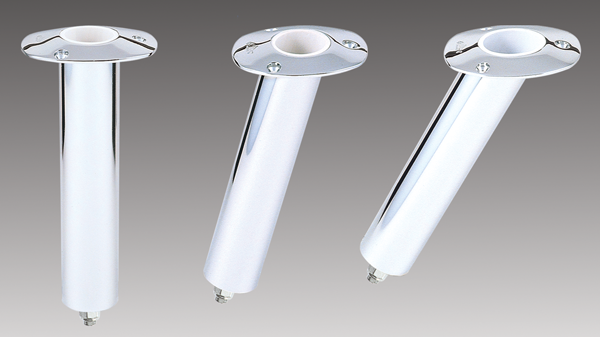

Large Swivel Rod Holders - 2¼ in. OD x 10½ in.Tube · For Standard Large Curved Butt Rods

RH577V Large 0º Stainless Steel

RH579H Large 15º Stainless Steel

RH575 Large 30º Stainless Steel

HEAVY SWIVEL ROD HOLDER · 2¼ in. OD x 14½ in.Tube · For Standard Large Curved Butt Rods

RH577XL Extra Long 0º Stainless Steel RH579XL Extra Long 15º Stainless Steel RH575XL Extra Long 30º Stainless Steel
The Extra Long Versions of these rod holders are 4” longer than the standard length. Allowing the bent butt to sit deeper in the holder thus reducing the leverage and stress on the mounting surface. postisons the reel lower

Medium Swivel Holders - 2 in. OD x 9 in Standard Length Tube

RH5367V Med. 0º Stainless Steel RH5369H Med. 15º Stainless Steel RH5365 Med. 30º Stainless Steel

MEDIUM SWIVEL ROD HOLDERS · 2 in. OD X 6 ½ in. Tube · Short Tube for Stand-Up Rods with Small Curved Butts

RH5167V Med. 0º Stainless Steel RH5169H Med. 15º Stainless Steel RH5165 Med. 30º Stainless Steel

Rod Holder Accessories

For the “Ultimate Installation” use our stainless steel backing plates. Designed for Lee swivel base and heavy flush rod holders, they’re constructed from heavy gauge type 316 stainless plate and have built in safety eyes on both sides. Available in two models, the RH5900 accommodates 0 & 15 degree rod holders in gunnels up to 1-3/4” thick. The RH5930 accommodates 30 degree rod holders in gunnels up to 1-1/2” thick. Both come complete with stainless bolts, locknuts and washers for a maximum strength installation.

RH5931-Medium
Stainless Steel Backing Plates Hardware Included

Fits All Angles

RH5930-Large
Stainless Steel Backing Plate Hardware Included

Fits All Angles

Backing Plates
Inserts Available for all sizes of Rod Holders
RH511 Inserts for RH510 & RH527V
RH513 Inserts for RH5112, RH552CB & RH552XL
RH516 Inserts for RH5115, RH532V, RH532VS, RH577VS & CH110
RH526 Inserts for RH525 & RH525SS
RH528 Inserts for RH529H & RH529HS
RH531 Inserts for RH530, RH530SS &RH575
RH535 Inserts for RH534H, RH534HS& RH579H
Inserts
